I. What is High Gloss Seamless Injection Molding?

High Gloss Seamless Injection Molding technology, also known as Rapid Thermal Cycling Injection Molding technology, is based on the core concept that during the injection molding process, the mold temperature is rapidly increased and then rapidly cooled, thereby forming plastic products with a mirror-like surface that does not require painting in one go.

In traditional injection molding, there is a "dilemma" in controlling the mold temperature: if the mold temperature is set at a low level, the production cycle is short and there are fewer shrinkage marks. However, the drawback is that it is prone to produce fusion marks, reducing the surface luster. On the other hand, if the mold temperature is set at a high level, this problem does not exist, but the disadvantage is that it is prone to warping and deformation, and the cycle is long, with high costs.

For ordinary products, it may not be a big deal, but for automotive interior and exterior parts, it is a very serious issue that needs to be considered. If there are fusion marks on automotive interior parts, it not only affects the appearance, but also reduces the structural strength of the product - in dangerous situations such as collisions, the fusion marks may become the starting point of fracture, causing more serious safety hazards.

II. Technical Principle of the High-Gloss Seamless Injection Molding Process

The core of the high-gloss seamless injection molding is the temperature control technology of the mold - allowing the mold temperature to "rise first and then drop" during a molding cycle.

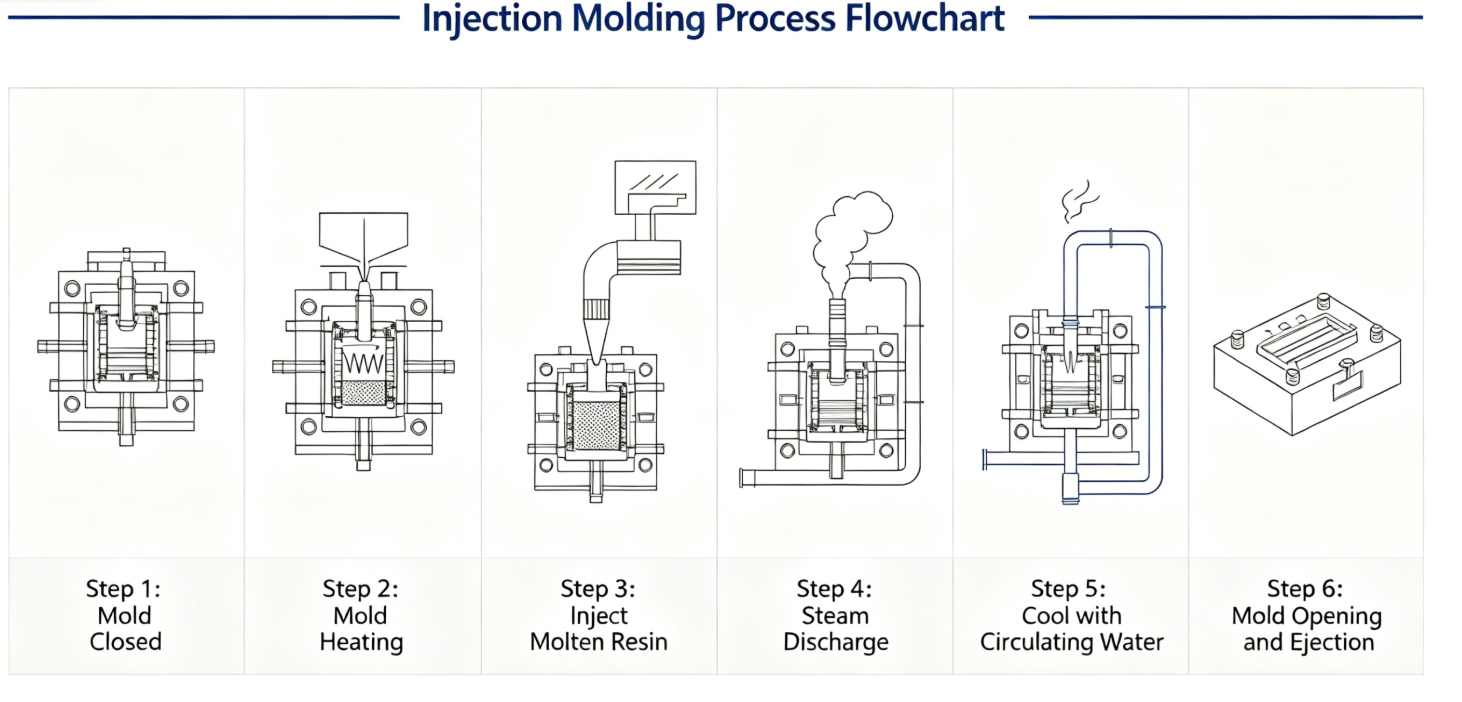

The specific process is as follows:

Heating stage: The surface temperature of the mold rises to 100-150℃, which is higher than the thermal deformation temperature of the resin.

Cooling stage: The surface of the mold rapidly cools down to 20-40℃, which is lower than the thermal deformation temperature of the resin.

The advantage of this approach is that during injection, the mold temperature is high, the melt has good fluidity, and the filling is smooth, allowing the weld line to disappear. Then during cooling, the mold temperature is low, the curing speed is fast, the molding cycle is short, and the dimensions are stable. Currently, the most widely used in industrial applications are steam heating systems (introducing high-temperature steam to heat the mold surface, up to 160 degrees) and high-pressure hot water heating systems (introducing high-pressure hot water in a circulation to heat). These two technologies are mature, reliable, and have good uniformity.

III. The high-gloss seamless molds differ significantly from ordinary molds, mainly in the following aspects:

1. The surface finish of the molds is extremely high.

• The molding surface must be polished to mirror grade or higher.

• It directly determines the final gloss of the product and does not require subsequent spraying.

2. The selection of mold steel is strict, requiring good polishing properties, corrosion resistance, heat treatment stability, and high hardness.

3. The design of heating/cooling pipelines is crucial.

• The mold interior must have a balanced medium passage.

• It needs to be optimized based on mold flow analysis (such as Moldflow).

• The layout of the heating pipes directly affects the temperature uniformity and molding cycle.

4. The thermal flow system configuration is complex.

• Usually, 6 to 8 or even more heat nozzles are required.

• Each heat nozzle needs a sealing needle and an independent airway.

• Through electromagnetic valves and timing controllers, it realizes time-sharing injection of resin and controls the weld marks.

5. The fixed mold side requires a heat insulation plate.

• To prevent heat loss and ensure heating efficiency.

IV. The main application scenarios in the automotive field:

The high-gloss seamless technology is mainly applied in the following areas of automotive interior decoration panels, dashboard covers, door handle accessories, and center console decorative strips, etc.

Take the Panasonic home theater HT869 panel as an example: Due to the multiple holes on the panel, multiple weld marks are generated during injection molding, and secondary processing by CNC is inevitable. With the high-gloss seamless technology, these problems are fundamentally solved.

V. Although the advantages of the high-gloss seamless technology are obvious, there are still the following problems:

1. There are few practical heating methods: Currently, the mature solutions are mainly steam heating and high-pressure water heating.

2. High equipment costs: An independent temperature control system is required to be combined with the injection molding machine, and the one-time investment is large.

3. High operating costs: The steam system requires boilers and pipelines, and energy consumption is high.

4. Product size is limited: The electric heating solution is only suitable for small-sized products.

VI. Application Suggestions for the Automotive Industry

For automotive component manufacturers considering introducing the High Gloss Seamless Technology, it is recommended to prioritize components with high aesthetic requirements and those that cannot be effectively produced using traditional methods (such as panels with holes, high-gloss decorative parts). Before production, it is necessary to assess the production capacity scale, as the one-time investment in the High Gloss Seamless process is relatively high and requires sufficient order volume for support. Before mold production, use software such as Moldflow for simulation verification to optimize the gate position and temperature control scheme. The molds need to be given due attention for maintenance, as frequent thermal and cold cycles have a significant impact on the mold's lifespan. A complete maintenance system must be established.
