Recently, our assembly workshop successfully completed the assembly of a highly complex mold with extremely stringent precision requirements. This mold integrates multiple slider mechanisms and angled-lifter core-pulling structures, with densely interlinked configurations that make its assembly notably challenging even among similar products.

The "complexity" of this mold is first reflected in its structure. The product itself features numerous undercuts and varying demolding directions, for which the design adopted a combination of 8 slider mechanisms and 6 angled-lifter structures. The sliders and lifters are subject to timing coordination during motion – if the sliders do not retract first, interference will occur when the lifters eject, potentially damaging the mold in mild cases or causing component scrap in severe cases. This demands that the assembly team not only ensures smooth movement of each individual mechanism, but also precisely controls the coordinated sequence between them.

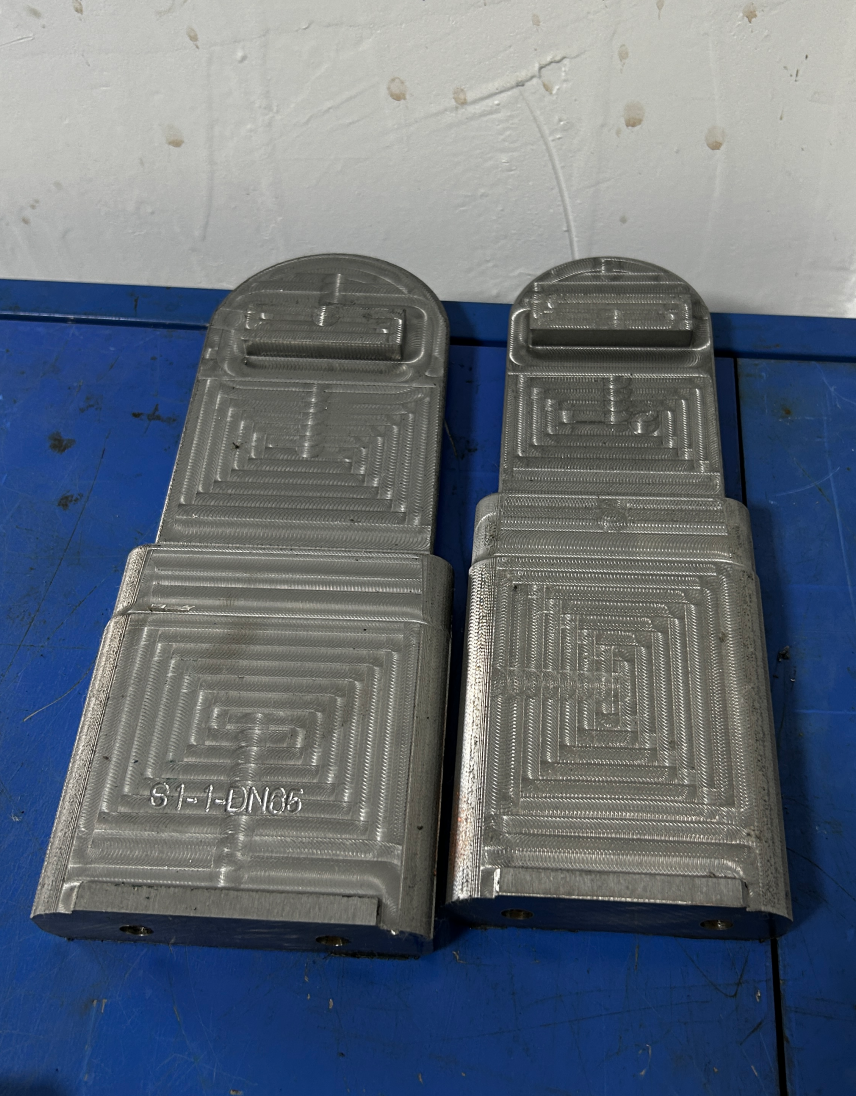

One of the core difficulties in assembly lies in the precision control of the mating surfaces between sliders and angled lifters. The parallelism deviation of the slider guide rails must be strictly controlled within 0.01mm, and the guide angle deviation of the lifter rods must not exceed ±0.02°. Our assembly technicians first applied red lead paste to the parting surface for repeated spotting and fitting, ensuring a contact rate of over 90%. They then used dial gauges to check the sliding resistance of each slider group one by one, making repeated adjustments until the movement felt uniform and smooth in both forward and backward directions. During this process, the team discovered that one set of sliders exhibited motion sticking due to slight deformation caused by heat treatment. The assembly leader immediately coordinated with the machining department for secondary finishing, re-calibrating the straightness of the guide rails. Ultimately, the sliding resistance of this set was reduced from an initial 12N to a stable value within 5N, meeting the design expectations.

The assembly of the angled-lifter mechanism was equally demanding. Among the six lifter rods, two were paired and required synchronized ejection; otherwise, the product would deform due to uneven ejection forces. The assembly team adopted a synchronized ejection test method, using dial gauges to monitor the ejection height differences among all lifter groups, and repeatedly adjusted the fit clearance between the lifter seats and the ejector plate. Finally, the synchronization error of all six lifters was controlled within ±0.05mm, achieving smooth and balanced ejection.

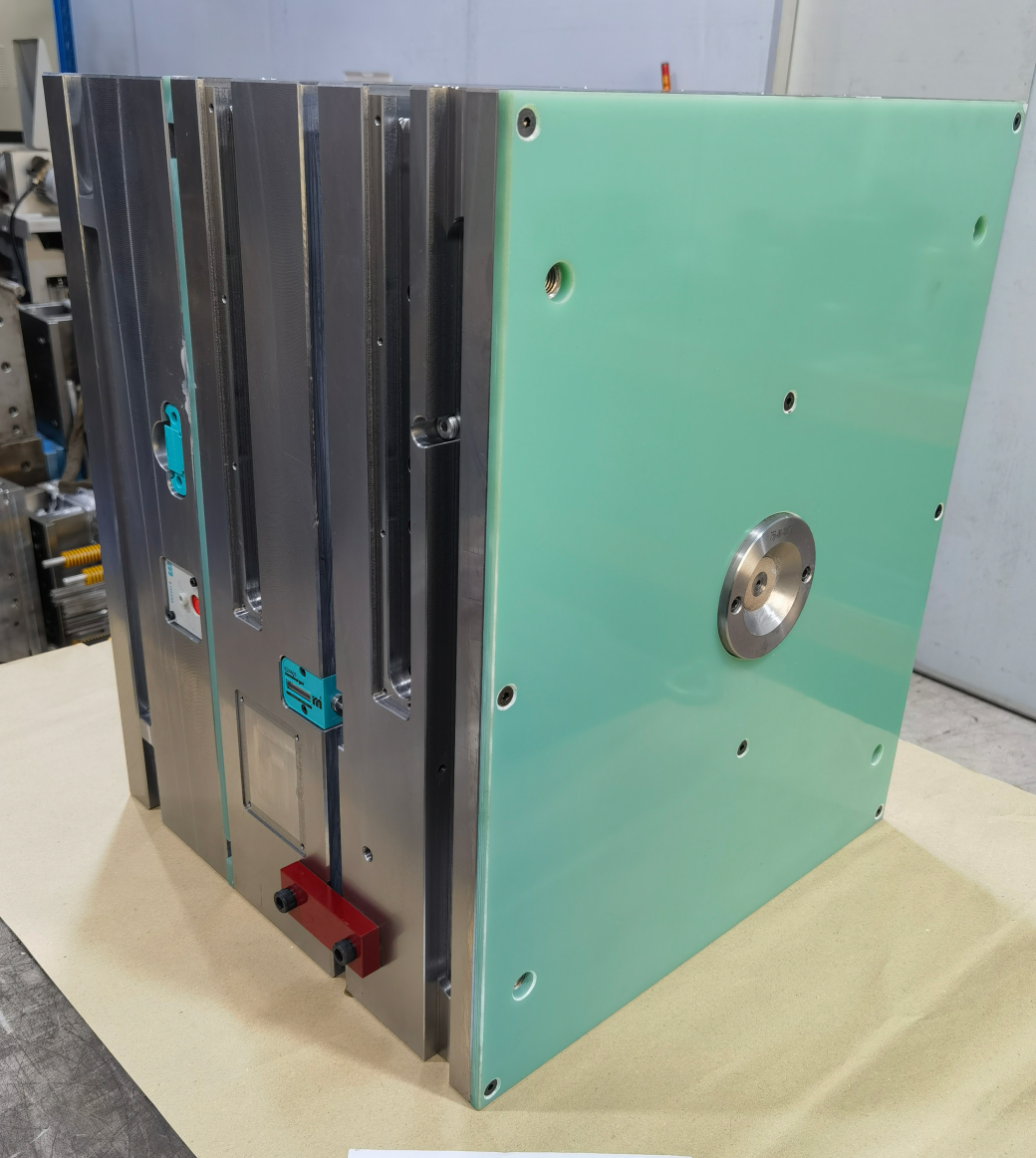

The mold-clamping acceptance phase was carried out with equal meticulousness. The assembly team thoroughly inspected the parting surface, slider contact faces, and lifter guide holes under clamped condition, ensuring no interference, no abnormal noise, and correct sequence of motion for all moving components.

At present, this mold has been smoothly transferred to the trial molding phase, with all static and dynamic inspection data meeting the design requirements. Behind this achievement lies the collaborative effort of the design, programming, machining, and assembly teams – from structural clearance analysis to assembly sequence planning.

In mold assembly, every sliding trajectory affects the quality of the final product. We will continue to uphold our rigorous standards and exquisite craftsmanship, delivering to our customers every precision mold that stands up to the strictest scrutiny.
